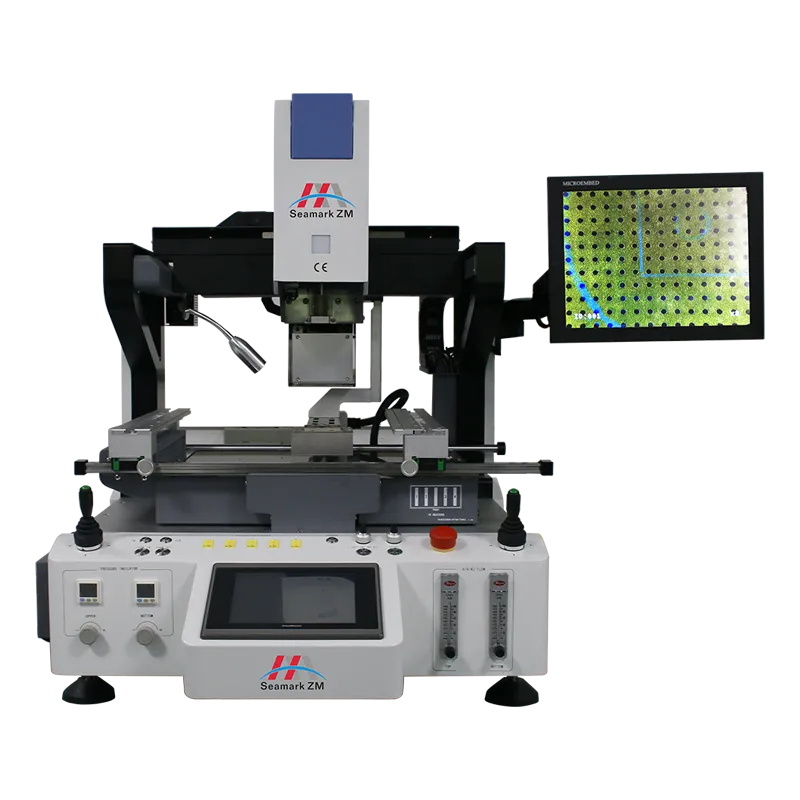

ZM-R7830A Smart Optical BGA Rework Station
-
—— The Flagship Solution for High-End Server & Precision Chip Repair
The ZM-R7830A represents the pinnacle of Seamark ZM’s 2025 rework technology. This is not just a soldering tool; it is an intelligent repair center integrating Smart Temperature Control, HD Optical Alignment, and Fully Automated Operation.
Engineered to solve the most difficult rework challenges—from large-scale Server Boards and 5G Base Stations to microscopic Mobile Chips (down to 01005)—the R7830A utilizes advanced Hot Air + Infrared (IR) Hybrid Heating to ensure 99.9% success rates without damaging sensitive components.
Pro Tip: Eliminate manual alignment errors. The R7830A makes complex BGA rework a standardized, repeatable, "one-button" process.
Key Features & Technologies
High-Definition Optical Alignment System
Split-Vision Technology: Features a high-resolution color CCD optical system with split-vision, zoom, and micro-adjustment capabilities.
Crystal Clear Visuals: Observe the perfect alignment of BGA solder balls and PCB pads on the 15-inch HD display.
Extreme Precision: Achieves placement accuracy of ±0.01mm, easily handling components with pitch as small as 0.2mm.
Intelligent Independent 3-Zone Heating
Hybrid Power: Top Hot Air + Bottom Hot Air + Large Area Bottom IR Preheating. This hybrid design prevents the "popcorn effect" and PCB deformation.
Server Board Ready: The large carbon fiber infrared preheating area ensures uniform heat distribution, crucial for reworking large, multi-layer server motherboards.
Closed-Loop Control: High-precision K-type thermocouples monitor temperature in real-time, keeping deviation within ±1℃ of your set profile.
Automation & Smart Safety
3-in-1 Automation: Automatically Desolder, Mount, and Solder with a single button press.
Pressure Sensing Protection: The mounting head is equipped with a sensitive pressure sensor. It automatically detects the PCB height and stops immediately upon contact to prevent crushing the chip.
Laser Positioning: A red laser pointer helps operators quickly position the PCB for faster batch processing.
As one of the top pcb rework station suppliers in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable product quality, full service. If you want to know some different types of BGA repair machines and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.
Application Fields
The ZM-R7830A is the industry standard for reworking various encapsulation types:
Components: BGA, PGA, POP, BQFP, QFN, SOT223, PLCC, TQFP, and Micro-SMD components (down to 01005).
Industries: Cloud Server Repair, 5G Telecommunications, Automotive Electronics (ECU), Aerospace, and Mobile Device Refurbishing.
