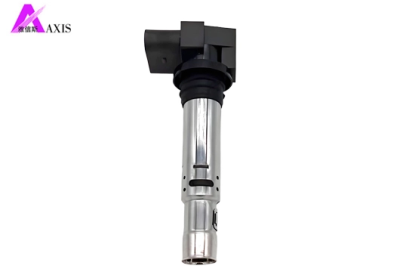

Ignition Coil 036905715F

  • Posted by Axis com September 8, 2025 Filed in Arts & Culture 102 views
    click to rate

    VW/Audi 1.8T/2.0T (Jetta, Passat 2015-2021)



    Integrated igniter module for precise timing (no ECU reprogramming needed)



    IP6K9K waterproof rating – ideal for flooded roads



    Specifications of Ignition Coil 036905715F

    Product Name

    Ignition Coil for VW Golf 1.4 Polo Jetta 1.6 FSI Tiguan Audi Seat 036 905 715F

    OE Number

    0986221023
    036905100C
    036905715H
    036905715F
    036905715G
    036905715A
    036905715C
    036905715E

    Compatibility

    VW BEETLE   2002-2016 14T 1.4 55KW
    VW CADDY    2004-2011 1.4 55KW/59KW
    VW CC       2009-2016 1.4T
    VW EOS      2006-2016 1.6FSI 1.4T
    VW GOLF     1998-2013 1.4T 1.6FSI 1.4 55KW/59KW
    W GOLF PLUS 2005-2014 1.6FS1 1.4 55KW/59KW 1.4T
    VW BORA     1999-2005 1.4 55KW 1.6FSI
    VW JETTA    2006-2016 1.4T 1.6FSI PASSAT 2006-2015 1.4T 1.6FSI
    VW POLO     2002-2016 1.4 1.4T
    VW SCIROCCO 2009-2016 1.4T
    VW SHARAN   2011-2016 1.4T
    VW TIGUAN   2008-2016 1.4T
    VW TOURAN   2003-2015 1.6FSI 1.4T
    VW LUPO     1999-2006 1.4 55KW
    Audi:
    AUDI A1     2011-2014 1.4T
    AUDI A2     2000-2005 1.4 55KW
    AUDI A3     2004-2013 1.6FSI 1.4T
    Seat:
    Seat ALHAMBRA 2011-2015 1.4T
    Seat ALTEA    2007-2015 1.4 63KW 1.4T
    Seat IBIZA    2002-2015 1.4 74KW 1.2 1 4 55KW
    Seat LEON     2002-2013 1.6FSI 1.4 55KW
    Seat TOLEDO   2002-2015 1.6FSI 1.4 55KW/63KW
    Seat CORDOBA  2003-2009 1.4 73KW/55KW/74KW 1.6FSI 1.4 63KW
    Skoda:
    Skoda FABIA    2000-2015 1.4 55KW/63KW/74KW
    Skoda OCTAVIA  2001-2013 1.4 55KW/59KW 1.6FSI
    Skoda ROOMSTER 2006-2015 14
    Skoda SUPERB   2008-2015 1.4T
    Skoda YETI     2010-2016 1.4T

    Type

    Pencil Coil
    With Integrated Ignition Driver Module

    Temperature Rang

    Operating: -40°C ~ +150°C
    Storage: -50°C ~ +160°C

    Output Voltage

    ≥35 kV



    Key Features of Ignition Coil 036905715F

    High-Temperature Stability

    High-voltage output capability for turbocharged engines.
    Low resistance design minimizes energy loss.

    Extreme Environment Resistance

    Reliable operation in both arctic and desert conditions.
    IP67 rating ensures durability in wet/dusty environments

    Long Service Life & Low Maintenance

    PA66-GF35 housing resists fuel/oil degradation.
    Maintenance-free under standard driving conditions.



    As an industrial rubber products company, we will do our best to meet all the needs of customers.
