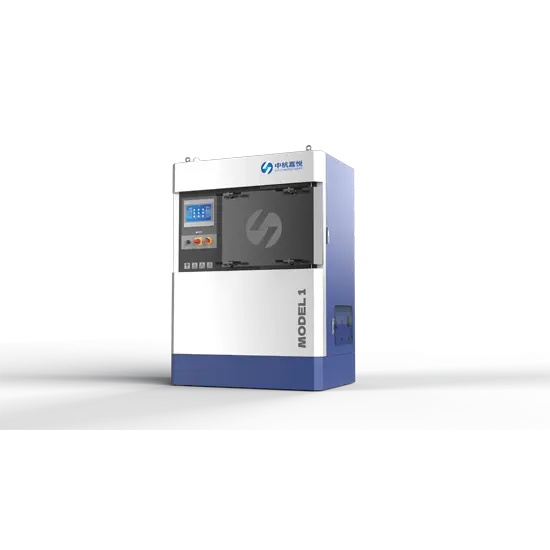

Atmosphere Sintering Furnace
-
Model: JYRH1-1RM
Product Performance
Specification: 1400℃-300×200×200 /1400℃-400×300×300
Operating temperature in the air: Maximum temperature 1300℃, continuous working temperature＜1300℃.
Specifications：1700℃-300×200×200 /1700℃-400×300×300×300
Using temperature in the air: Maximum temperature 1600℃, continuous working temperature＜1600℃.
Specification: 1800℃-300×200×200
Use temperature in the air: Maximum temperature 1800℃, continuous working temperature＜1750℃.
Description of controlled atmosphere heat treatment furnace
Atmosphere sintering furnace is a new atmosphere protection sintering equipment developed by our company, this product adopts SUS304 stainless steel sealing chamber, integrated heating system, gas supply system, vacuum system, monitoring system in one, powerful, to meet most of the requirements of customers. It is suitable for atmosphere protection sintering, atmosphere reduction, annealing and so on.
FAQs of Atmosphere Sintering Furnace
A: Compared to similar products, what are the key advantages of this sintering furnace's heating body and hot field design that contribute to a longer service life?
The use of mortise and tenon and bolt combined connection, can effectively release stress and natural expansion and contraction, reduce stress-induced damage; patchwork multi-layer material insulation metal heat insulation structure, with a fire-blocking structure and step-type wrapping, effectively preventing heat loss, insulation effect and impact resistance; unique temperature field design and insulation connection, reduce maintenance frequency, prolong the service life.
Parameter of Atmosphere Sintering Furnace
FAQs of Atmosphere sintering furnace pdf
A: Compared to similar products, what are the key advantages of this sintering furnace's heating body and hot field design that contribute to a longer service life?
The use of mortise and tenon and bolt combined connection, can effectively release stress and natural expansion and contraction, reduce stress-induced damage; patchwork multi-layer material insulation metal heat insulation structure, with a fire-blocking structure and step-type wrapping, effectively preventing heat loss, insulation effect and impact resistance; unique temperature field design and insulation connection, reduce maintenance frequency, prolong the service life.
Features of hydrogen sintering furnace
Adopting double-layer shell structure, the surface temperature of the furnace body is lower, and the design is compact to meet the requirements of small space in the laboratory;
The furnace chamber is made of imported alumina polycrystalline fibre material, with good heat preservation, durability, high tensile strength, no stray balls, high purity, and energy-saving effect significantly better than domestic fibre materials;
Adopting imported high quality heating element, which greatly improves the service life;
The inner furnace cavity is made of high temperature resistant alloy material, professional vacuum design and sealing technology, which ensures the airtightness of the furnace cavity, and the vacuum degree is far more than that of similar products;
Reserve all the way into the gas interface, can be individually controlled gas flow, to meet the atmosphere of the experimental requirements;
The machine is reserved for water-cooled interface, can be optional with my company's chiller with the use;
The machine has over-temperature alarm, leakage protection, over-voltage protection and other functions, safe and reliable operation, effective protection of personal safety.
FAQs of Atmosphere Sintering Furnace
A: Compared to similar products, what are the key advantages of this sintering furnace's heating body and hot field design that contribute to a longer service life?
The use of mortise and tenon and bolt combined connection, can effectively release stress and natural expansion and contraction, reduce stress-induced damage; patchwork multi-layer material insulation metal heat insulation structure, with a fire-blocking structure and step-type wrapping, effectively preventing heat loss, insulation effect and impact resistance; unique temperature field design and insulation connection, reduce maintenance frequency, prolong the service life.
If you are looking for a reliable atmosphere furnace company, please contact us.
For more information about sintering furnace diagram and buy heat treating equipment, please feel free to contact us!
