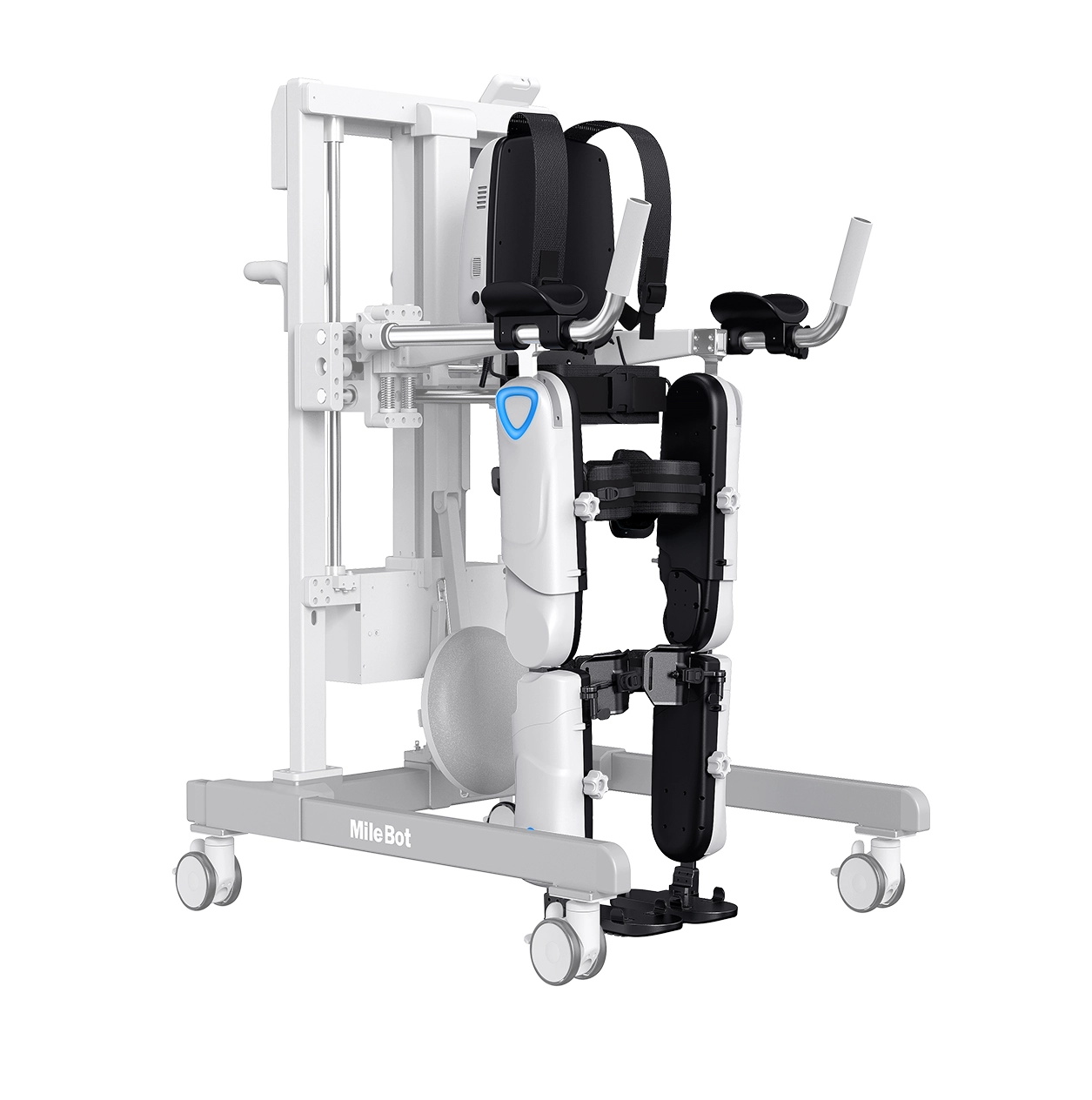

Lower Limb Rehabilitation Robot BEAR (H Series)

• Posted by MileBot com November 13, 2025 Filed in Business 27 views
  click to rate

  The BEAR H series of products are rehabilitation robots that feature both active training mode and passive training mode, making them stand out among different types of rehabilitation robots. They are designed to help adult patients with training and rehabilitation. The BEAR H series are applicable for patients with a height range of 155cm to 190cm.



  Specifications of Lower Limb Rehabilitation Robot BEAR-H1

  Specifications		BEAR-H1	BEAR-H2
  Function		With Ankle Actuator	Without Ankle Actuator
  Body coverage		Bilateral legs, feet, and lower back
  Applicable human height		155-190cm
  Applicable human body weight		≤85Kg
  Product Weight		26 ±2Kg	24 ±2 Kg
  Product size	Thigh length adjustable range	3 60 ~4 80 mm, tolerance ±10mm
  	Adjustable range of calf length	34 5 ~4 50 mm , tolerance ±10mm
  	Adjustable waist width	2 90 ~4 20 mm , tolerance ±10mm
  	Adjustable waist depth range	70 ~ 115 mm, tolerance ±10mm
  Activity aids		Crutches, walkers, treadmills
  Walking speed		2s/gait cycle ~ ~ 10s/gait cycle (Gait cycle: the time required for the same side of the limb to make two consecutive initial touchdowns is a gait cycle), the error is ±1 0%.
  Road slope		- 5 °~ 5 °
  Required surface type		Smooth, hard, flat ground
  Interaction		Touch screen display
  Range of motion	Hip sagittal range of motion	- 3 0°~﹢ 10 0°, tolerance ±5°
  	Hip cross-sectional range of motion	- 20 °~﹢ 2 0°, tolerance ±5°
  	Knee sagittal range of motion	0 °~105 ° , tolerance ±5°
  	Ankle sagittal range of motion	- 4 0°~﹢ 3 0°, tolerance ±5°	not applicable
  Battery life		>2h
  Battery charging time		Charging time when fully discharged: 5h
  Product Expiration Date		5 years
  Electrical safety testing standard		GB 9706.1-2007
  Electromagnetic compatibility testing standard		YY 0505-2012
  Charging power supply		AC 1 00-240V
  Power frequency		50/60 Hz ±1 Hz
  Internal power supply		Rechargeable Li-ion Battery DC 21.6V 21Ah



  lower limb rehabilitation robot BEAR (H Series) Features

  1. Design with safe stand: the rehabilitation robot is equipped with a stand which can support patients and protect them from falling.



  2. Comfortable trainning experience: the robot uses built-in compliant actuators to drive itself. It can produce flexible output to keep patients comfortable when they doing trainning.



  3. Multiple mode options: the robot can provide serval trainning modes including intelligent mode, continuous walking mode, single-step walking model and Leg Swing trainning mode, it can meet patients' demand in different rehabilitative stage.



  4. Adjustable structure:  the waist width and the length of thigh and calf are all adjustable. These adjustable parts keep patients safe and secure when they are trainning.





  For more information about powered exoskeleton and soft robotics rehabilitation, please feel free to contact us!
